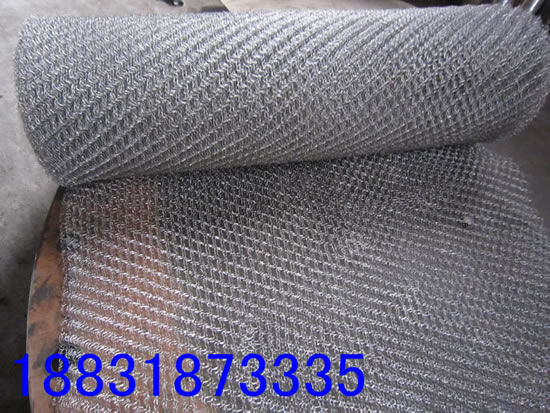

Gas-liquid filter screen for demister

Gas-liquid filter screen, also known as foam breaking screen, defoaming screen, foam catching screen, defoamer screen, and gas-liquid filter screen, is a type of wire mesh woven by crochet method, usually made of stainless steel wire with a diameter of φ 0.12mm~ φ Between 0.30mm, the width of the mesh includes: 10mm, 20mm, 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 150mm, 300mm, 400mm, 500mm, 550mm, 600mm, etc; The sizes of mesh holes include: 2 * 4mm, 4 * 5mm, 7 * 12mm, and other hole types. The woven mesh surface is pressed with ripples with a slope angle of 20-45 degrees and a depth of 4-7mm.



Gas-liquid filter screens are widely used in processes such as foam breaking, gas-liquid separation, gas-water separation, and oil gas separation of mechanical equipment in distillation, evaporation, absorption, and other processes in petroleum, chemical, light industry, medicine, metallurgy, aerospace, shipbuilding, and environmental protection engineering. Place it inside the tower to create a defoamer for crushing bubbles, reducing them to droplets to ensure mass transfer efficiency, reducing the loss of valuable materials, reducing the volume of the tower or container, and improving the operating conditions of the equipment.
